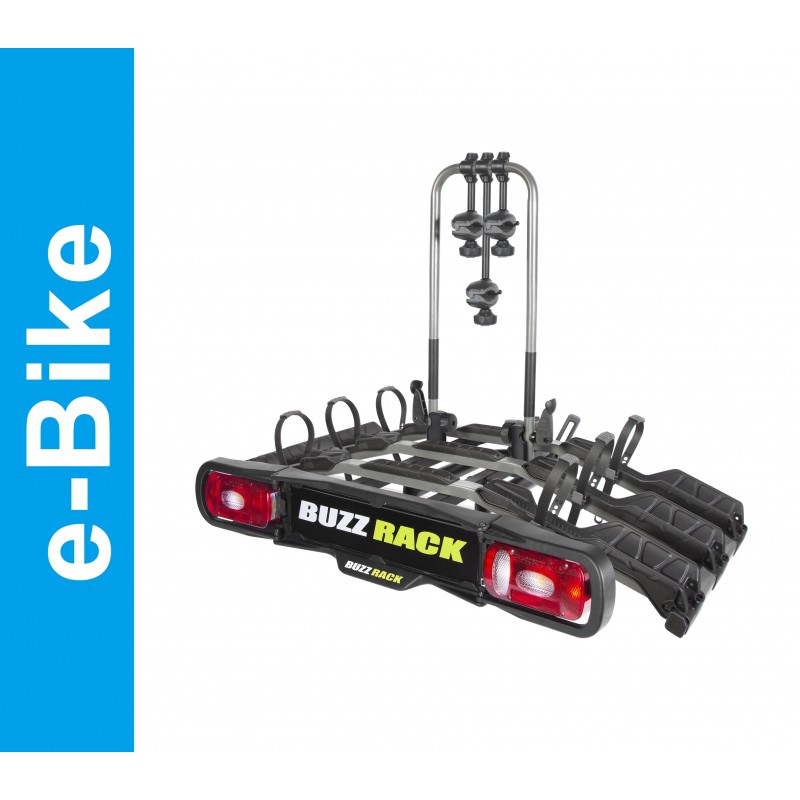

E-HORNET 3 - Bike Carrier Platform Hitch 3 Electric Bikes 13 Spindles

€499.90

Tax included

Quantity

Spare Parts

Expédition sous 24h

Conditions de retour

Paiement par prélèvement SEPA après livraison

Compare with other bike racks

The E-HORNET 3 is designed to carry up to 3 bikes without additional kit, for a total weight of up to 60 kg. Easy assembly with high stability of the conical clamping system. Quick-release ratchet straps and unique cradle design allow bikes to be loaded quickly and easily. Specially designed for VAE (electric bicycles), it accepts bicycles with wheelbases up to 134 cm (29"), and is easy to attach thanks to its locking clamp system.

Functionality(ies)

TOW BALL ATTACHMENT

The patented conical attachment system fits all ISO towballs of 50 mm diameter. Simple, fast and secure.
The system can be locked and secured by the lock button.
This system is one of the few that can claim to meet the highest safety standards.
WHEEL SUPPORTS

Wheel supports fit all types of bikes (Fat Bike, Gravel, VAE), even very small children’s bikes.
Secure system with a locking button.
LOCKING CLAMPS

The clamps are large enough to fit most bicycle frames.
Heavy-duty nylon pliers, each with a locking button

INCLINE

Truly easy to tilt, well balanced during the tilt phase, and tilts enough for trunk access.

LIGHTING

Equipped with 6 function lights and a 13-pin plug.

RAMP

Ramp available as an accessory, very useful in case of electric bikes to carry, avoids having to carry the 25 to 30kg of an electric bike at arm’s length.

Specially designed for VAE

Technical specifications

MAX number of bikes: 3
Tow ball compatible: yes
Compatible with gooseneck collar / detachable ball: yes
Dimensions (Width x depth x height): 127 x 88 x 89cm (26cm folded)
(measured from the center of the tow ball bracket to the outer edge of the license plate bracket).
Weight: 18.8 kg
MAX load: 60 kg
Weight max par vélo: 30kg
Tilt: yes
Anti-corrosion treatment : yes
Integrated lighting panel: yes
Type of light panel socket: 13 broches
Ball lock: yes
Bike lock: yes
Max. tire width: 4’’
MAX bike wheelbase : 134 cm and 29’’

The maximum load you can carry is also determined by the weight of the tow bar; you will need to verify that you do not exceed this before using a tow ball mounted bike rack.
Requires 65mm clearance between the center of the towball and the rear of the vehicle. If you have a 7-pin plug, the backup light and fog light will not work.
The 7-pin plug is not wired for these functions.
Does not allow the opening of the tailgate for the vehicles of type van (VW transporter, Citroën berlingot, Peugeot partner, Renault master,...)
